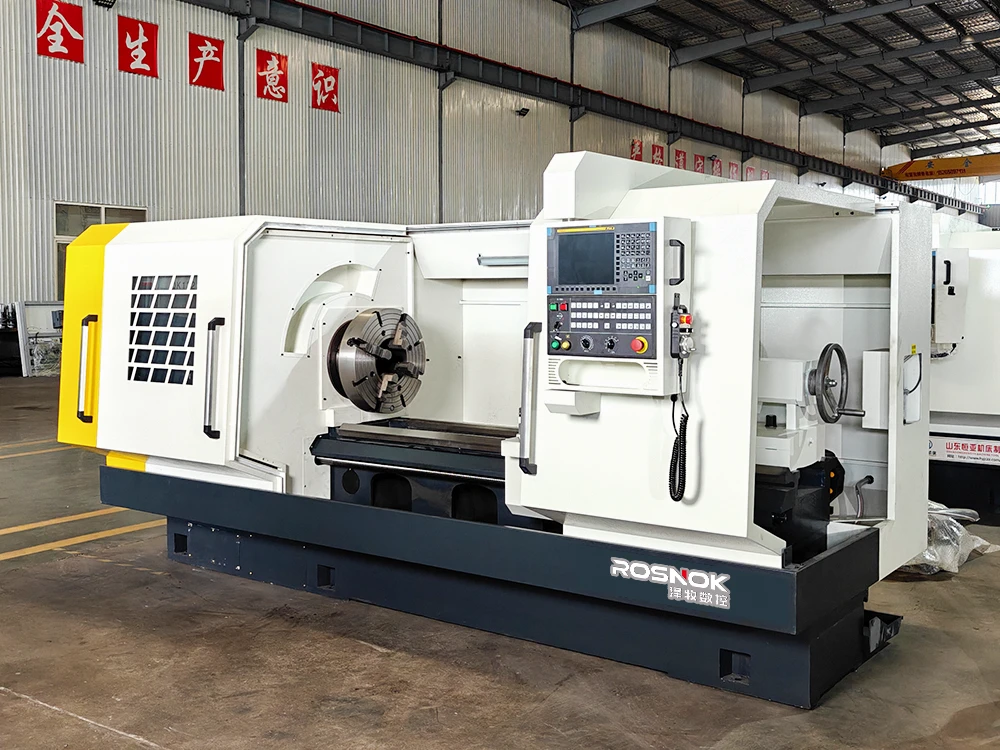

Ultra Stable QK1319 CNC Pipe Threading Lathe Machine
The Rosnok QK1319 CNC pipe threading lathe machine is developed to handle demanding pipe threading work with steady accuracy and long-term structural reliability. Its enlarged spindle bore, rigid casting design, and precise servo-driven feed system allow the machine to cut clean, uniform threads on tubing and casing materials without losing stability under heavy loads. Combined with an intuitive CNC interface and smooth linear motion control, the QK1319 ensures stable, repeatable threading quality during extended production runs.
QK1319 Specifications
| Swing Over Bed: | 630 mm |
|---|---|
| Swing over cross slide: | 330 mm |
| Spindle bore: | 200 mm |
| Distance between centers: | 1000-4000 mm |
| Bed Width: | 550 mm |
| Spindle speed range: | 500 rpm |
| Turret/tool post: | Electric 4 position |
| Spindle motor power: | 11 kW |
