What exactly is live tooling, and why do so many CNC lathes today come equipped with it? In this article, we will explore the definition, background, and applications of this important technology in modern machining.
Live tooling has become a standard feature in industries where precision and efficiency are essential. From automotive parts to aerospace components and medical implants, this capability is widely adopted by manufacturers worldwide. Its growing presence in turning centers shows that it is no longer optional, but a defining element of advanced machine shops.
By the end of this guide, you will clearly understand what live tooling is, why it matters, and how it fits into the evolution of CNC lathes.

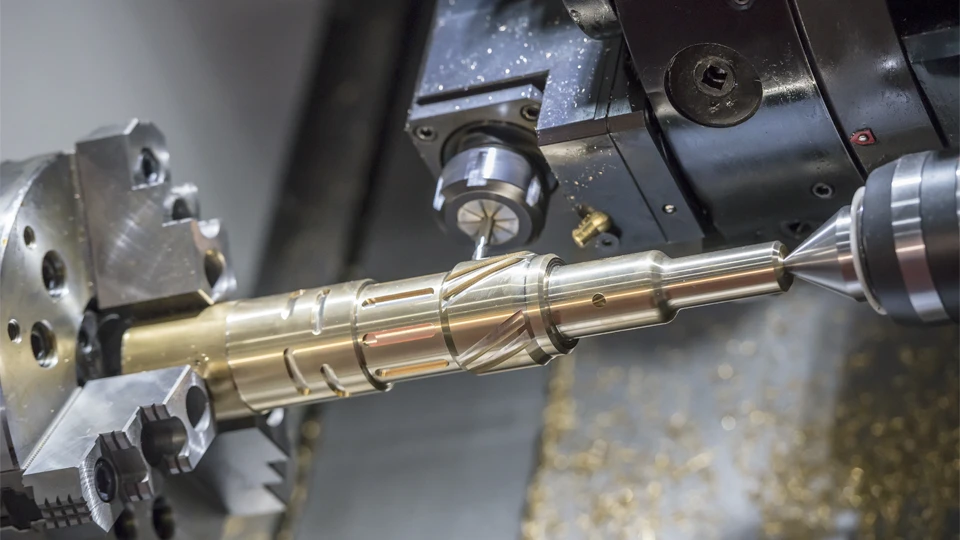

What Is Live Tooling?
Live tooling is a capability that allows a CNC lathe to do more than turning. In a traditional lathe, cutting tools are fixed and only the workpiece rotates. With live tooling, selected tools mounted in the turret can themselves rotate under power. This enables operations such as drilling, milling, and tapping directly inside the turning cycle.
The idea is not entirely new. It comes from the demand to integrate different machining processes and reduce part transfers between machines. As CNC technology matured, machine builders introduced powered tool stations in the lathe turret. These stations connect to the machine’s drive system and give the turret-mounted tool holders the ability to spin, effectively transforming a lathe into a multitasking platform.
Today, live tooling is no longer an exotic feature. Many modern CNC lathes are offered with it as a standard or optional configuration. The reason is simple: parts are becoming more complex, tolerances tighter, and production schedules shorter. A lathe limited to pure turning struggles to meet these demands without support from secondary machines. By contrast, a lathe equipped with live tooling provides higher flexibility and better process integration.

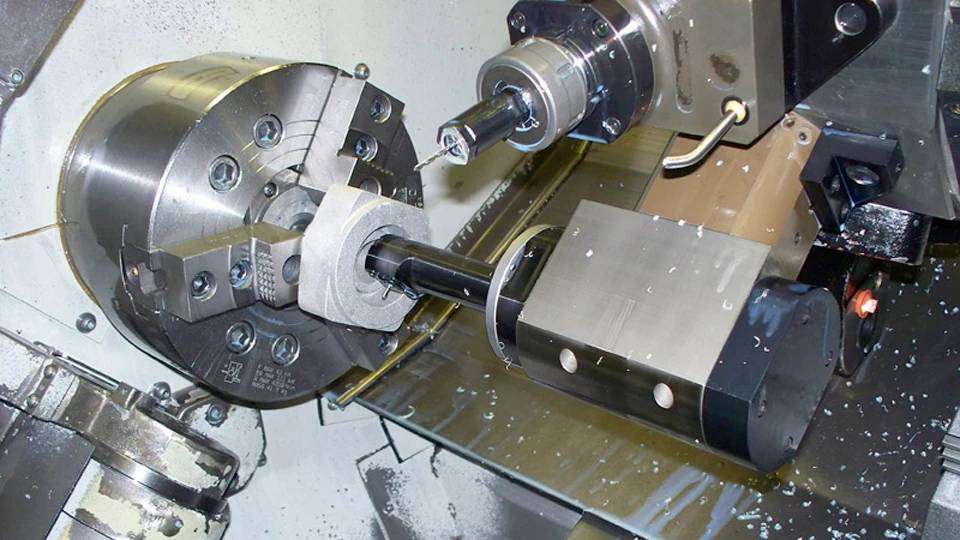

How Does Live Tooling Work?

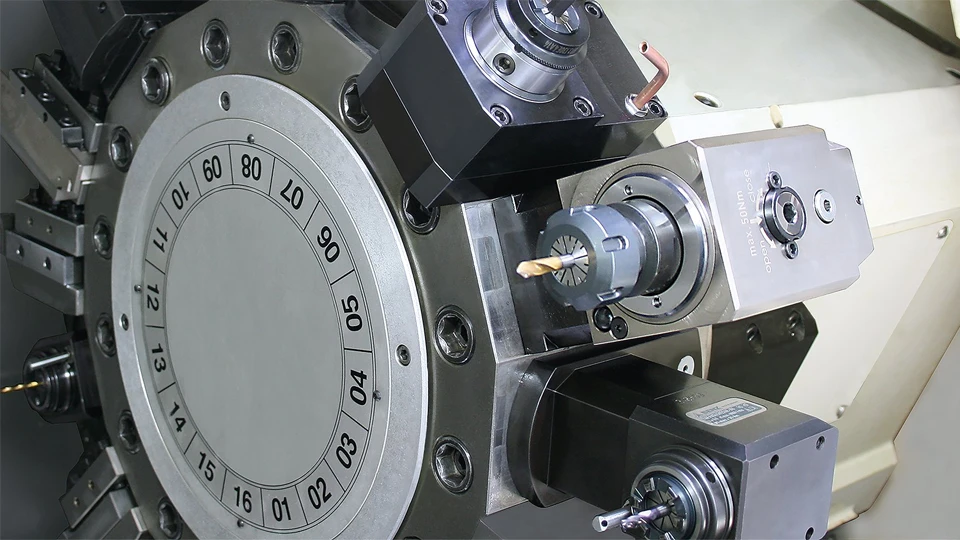

Live tooling works by transmitting power from the motor to specific tool stations in the turret. In a standard turret, tools are fixed and can only cut when the workpiece itself is turning. With live tooling, certain turret positions are equipped with a drive interface that engages with driven tool holders. These holders act as the mechanical bridge: they receive the power, transfer it through internal gearing or direct-drive systems, and rotate the cutting tool through the collet or chuck mounted in the holder. In this way, the tool holder determines both the orientation of the tool—radial, axial, or angled—and the stability of the machining process.
The drive source usually comes from a dedicated servo motor or the machine’s main spindle motor through a coupling system. The CNC control synchronizes this rotation with the workpiece spindle, so the tool can drill, mill, or tap in precise relation to the part geometry. This synchronization is especially important for features like cross holes or flats, where tool rotation and workpiece positioning must match exactly.
C-axis and Y-axis functions extend this capability further. The C-axis allows the lathe spindle to stop and index to specific angular positions, or to rotate in coordination with the tool. This makes operations such as radial drilling or slot milling possible. Machines equipped with a Y-axis add linear motion perpendicular to the main spindle, enabling off-center milling, keyways, or complex pocketing operations. Together, these motions expand the range of machining processes that can be executed without removing the part from the lathe.
In practice, live tooling turns a CNC lathe into a hybrid between a lathe and a milling machine. Instead of passing a component to multiple machines, turning and secondary operations are merged into a single cycle. The control system manages tool rotation, spindle orientation, and axis coordination to deliver accurate and repeatable results.
Key Benefits of Live Tooling
Live tooling provides several practical advantages that directly address common pain points in CNC machining. From reducing setups to improving accuracy and efficiency, these benefits explain why live tooling has become a standard capability in many modern CNC lathes.
Reduced Setups and Fewer Transfers
The main benefit of live tooling is that it eliminates the need to move parts between different machines. On a traditional CNC lathe, turning is all that can be done; features such as cross holes, flats, or tapped holes must be completed later on a milling machine. Every transfer introduces time, additional fixturing, and the risk of misalignment. With live tooling, these secondary operations are performed in the same cycle, reducing setups and saving valuable floor space.
Improved Accuracy and Concentricity
Another clear advantage is accuracy. Because the workpiece remains in the same chucking position, all machining processes share a single datum reference. This minimizes accumulated tolerance errors that often occur when a part is re-clamped on another machine. The result is better concentricity and positional accuracy, which is particularly critical in applications such as shafts with cross holes, precision hydraulic components.
Higher Efficiency and Productivity
Efficiency also improves significantly. By combining turning, milling, drilling, and tapping on one CNC lathe, cycle times are shortened and production flow becomes smoother. Shops can run smaller batches more profitably, react faster to design changes, and reduce the number of operators required to handle work in process. For manufacturers under pressure to deliver shorter lead times, this integration often makes the difference between winning and losing a contract.
Greater Flexibility in Part Production
Flexibility is another strong point. A lathe equipped with live tooling can handle a wider variety of part geometries and smaller lot sizes without major reconfiguration. For subcontractors or job shops, this versatility helps keep spindles running even when customer demand is unpredictable. Live tooling therefore supports both high-volume production environments and high-mix, low-volume markets.
Summary of Benefits
In short, live tooling enhances machining accuracy, reduces the number of setups, shortens cycle times, and broadens the scope of parts that can be completed in one machine. These advantages explain why it has become a standard feature in many modern CNC lathes and why manufacturers across industries increasingly view it as essential rather than optional.
Applicability Assessment: When Does Live Tooling Make Sense?
Not every shop or every part requires live tooling. While the capability adds value in many cases, it is most effective under specific conditions. Understanding when live tooling makes sense helps manufacturers avoid unnecessary investment and apply it where it delivers the greatest return.
Part Features That Require More Than Turning
Live tooling is justified when parts include features that cannot be produced with turning alone. Examples include cross holes, end-face drilling, keyways, milled flats, and tapped holes. These features would otherwise need additional machines, fixturing, and handling, which live tooling eliminates.
Production Volume and Batch Size
For high-mix, low-volume production, live tooling reduces setups and speeds up turnaround. It allows shops to complete diverse parts in one machine without moving them across the shop floor. In high-volume production, the savings come from shorter cycle times and reduced labor, making the payback period faster.
Material Properties and Tolerance Demands
Live tooling adds value when working with parts that demand tight tolerances and high concentricity. Keeping the workpiece in one clamping reduces error accumulation. This is critical for aerospace, medical, and hydraulic components. On difficult-to-machine materials such as stainless steel or titanium, the stability provided by a rigid live tool holder ensures tool life and part quality.
When Live Tooling May Not Be the Best Fit
There are limits. If a part requires heavy milling, large tool diameters, or complex 3D geometries, a machining center or mill-turn machine may be more appropriate. In such cases, forcing a CNC lathe with live tooling to do the job can result in slow cycle times and unnecessary tool wear.

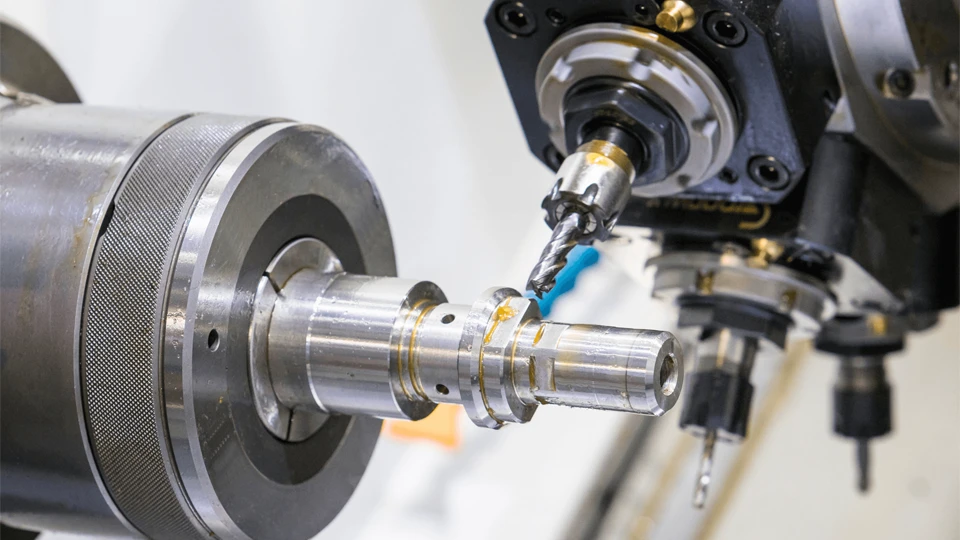

Applications of Live Tooling in Industry
Live tooling is not limited to one sector. Its ability to combine turning and secondary machining processes in a single setup makes it valuable across industries where precision, speed, and cost efficiency are critical.
Automotive Components
Automotive manufacturing demands high throughput and repeatability. Live tooling on CNC lathes allows valve bodies, shafts, and transmission parts to be machined with cross holes, flats, and threads without additional milling operations. This reduces cycle times and ensures consistent quality across large production runs.
Aerospace Parts
In the aerospace sector, many components require both turning and precise hole-making. Live tooling is especially useful for producing cross holes, tapped holes, and end-face drilling in parts such as hydraulic fittings, couplings, and shaft assemblies. By eliminating transfers between machines, manufacturers improve concentricity and maintain the tight tolerances demanded by aerospace standards.
Medical Devices and Implants
In the medical industry, live tooling is applied to small, high-precision parts such as orthopedic screws, dental implants, and surgical pins. Operations like micro-drilling, tapping, and slot milling can be completed in a single chucking, ensuring both accuracy and material integrity when machining biocompatible metals like titanium and stainless steel.
Electronics and Watchmaking
For industries that rely on miniature precision, such as electronics and watchmaking, live tooling enables micro-drilling, cross holes, and fine milling directly on small turned parts. This makes it possible to produce compact and intricate components without moving parts across multiple machines.

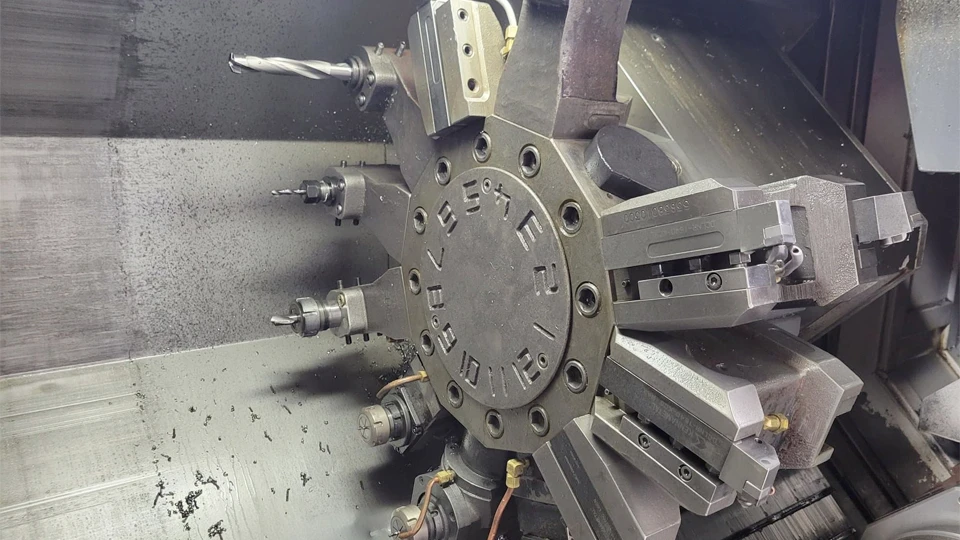

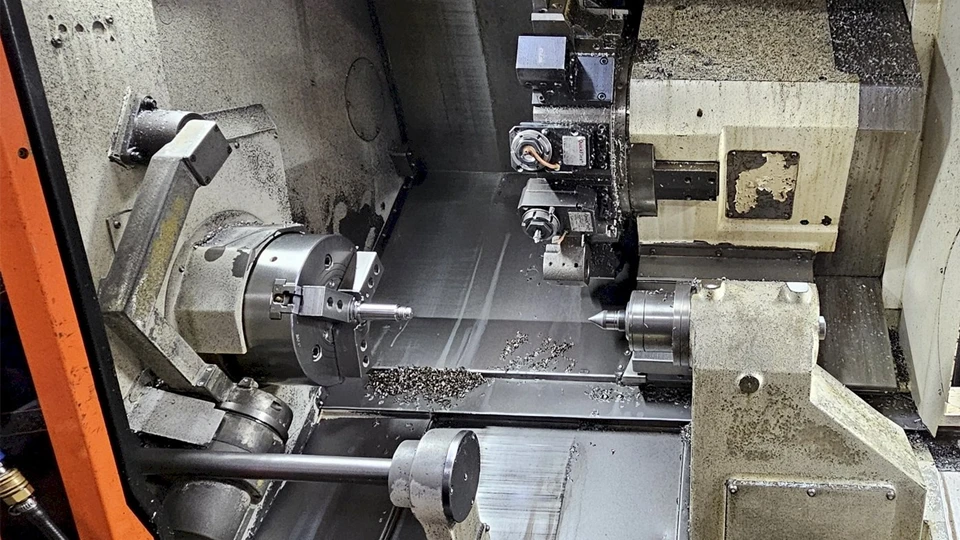

Traditional CNC Lathe vs CNC Lathe with Live Tooling
A traditional CNC lathe and a CNC lathe with live tooling may look similar from the outside, but their capabilities and applications differ significantly. Understanding these differences helps manufacturers decide which machine type best fits their production needs.
Structural Differences
In a traditional CNC lathe, the turret only holds fixed cutting tools, and material removal is limited to turning operations. By contrast, a CNC lathe with live tooling includes powered tool stations in the turret. These stations drive live tool holders, which rotate the cutting tools for drilling, milling, or tapping in addition to turning.
Machining Capabilities
A standard CNC lathe is effective for external and internal turning, facing, grooving, and threading. However, it cannot machine features that require tool rotation, such as cross holes, flats, or milled keyways. A live-tooling-equipped lathe expands the machining scope, combining turning with secondary processes that would otherwise require a separate milling machine.
Efficiency and Setup Time
Traditional CNC lathes often require multiple setups and machine transfers to finish a part with complex features. Each transfer increases handling time and tolerance stack-up. CNC lathes with live tooling reduce these steps by completing most features in one chucking. This shortens cycle times, improves concentricity, and lowers labor costs.
Cost and Investment Considerations
A standard CNC lathe typically has a lower purchase price and simpler maintenance, making it attractive for shops focused solely on turning. However, when secondary features are frequently required, the additional investment in live tooling pays off through higher efficiency and reduced machine usage.
Suitable Applications
Traditional CNC lathes are well-suited for high-volume production of simple turned parts where speed and repeatability matter more than versatility. CNC lathes with live tooling are ideal for parts that combine turning with additional features—common in automotive, aerospace, and medical industries—where minimizing setups and maximizing flexibility are essential.
Choosing the Right Live Tool Holders and Tooling Setup
The performance of live tooling depends not only on the machine itself but also on the quality of the live tool holders, clamping systems, and cutting tools. A well-chosen setup ensures rigidity, accuracy, and reliability during complex machining processes.

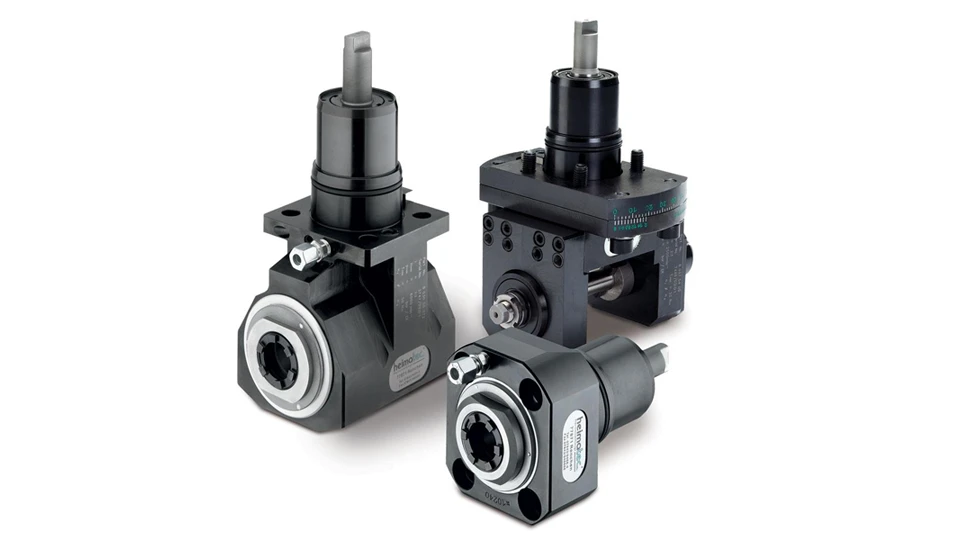

Selecting Live Tool Holders
Live tool holders are the interface between the turret drive and the cutting tool. Choosing the right holder type and specification is critical:
- Orientation: Available in axial, radial, or angle-adjustable versions depending on whether the operation is face drilling, cross drilling, or inclined milling.
- Speed and Torque Capacity: Match the holder’s maximum rpm and torque ratings with the machine’s motor to avoid overload.
- Cooling Options: Through-tool coolant delivery improves tool life and chip evacuation in deep-hole drilling.
- Construction Quality: High-precision holders reduce runout and vibration, ensuring long tool life and better surface finish.
Tool Holder Interfaces
The connection between turret and holder must be standardized and rigid:
- VDI: Widely used in European-style lathes, simple to change.
- BMT: Provides high rigidity and repeatability, common in modern turning centers.
- HSK-T: A taper-style interface with excellent stiffness, suitable for high-speed precision applications.
- CAPTO: Modular interface standardized by ISO, allows quick changes and strong torque transmission.
Tool Clamping Systems
Once the holder receives power, the clamping system secures the cutting tool. Different systems are used depending on accuracy and application:
- ER Collets: Flexible and cost-effective, suitable for a wide range of small tools.
- Shrink-Fit Holders: Provide maximum rigidity and concentricity, ideal for high-speed milling.
- Hydraulic Chucks: Offer excellent vibration damping and precision, suitable for finishing operations.
- Tap Holders with Compensation: Designed specifically for tapping, allowing axial float to protect threads and extend tool life.
Cutting Tools and Matching Principles
The final link in the chain is the cutting tool itself. For live tooling setups, correct matching is essential:
- Drills: Use through-coolant drills for deep holes; keep lengths short to minimize deflection.
- End Mills: Choose tools balanced for high speed, with coatings optimized for the work material.
- Taps: Match tap geometry with material type (spiral flute for blind holes, spiral point for through holes) and use appropriate tap holders.
- General Rule: Always balance tool length, diameter, and holder rigidity to minimize runout and vibration.

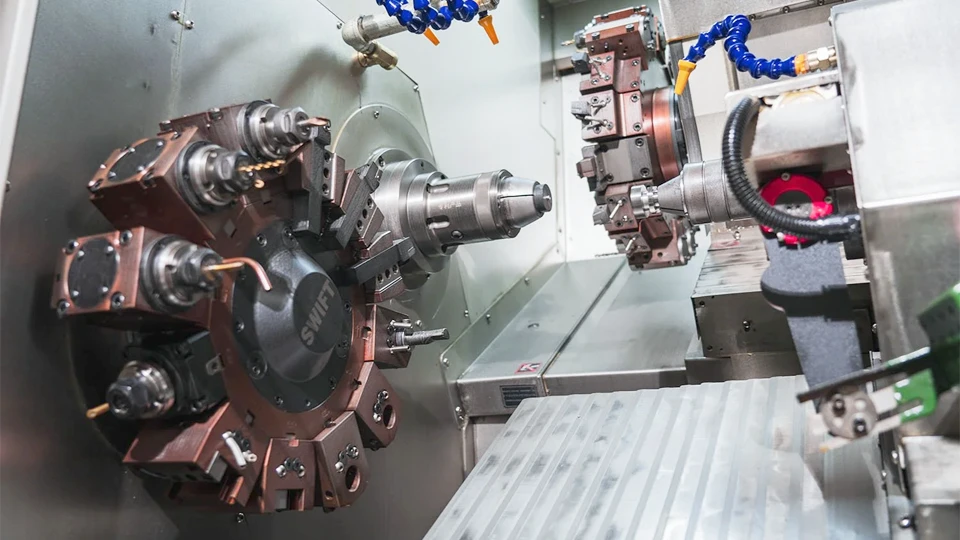

Is Live Tooling Worth the Investment?
For many shops, the decision to add live tooling comes down to cost versus benefit. While the technology increases machine price and maintenance requirements, it also delivers major gains in flexibility, accuracy, and throughput. The key question is whether those gains justify the investment in your specific production environment.
Initial Cost and Machine Investment
A CNC lathe with live tooling costs more upfront than a standard turning center. The price difference includes the live-tool-ready turret, powered tool holders, and often a more advanced CNC control. Shops must also account for the cost of additional tool holders, collets, and specialized cutting tools.
Efficiency and Return on Investment
The real savings come from reduced setups, fewer machine transfers, and shorter cycle times. By completing turning, drilling, milling, and tapping in one setup, shops reduce handling and free up floor space. For high-mix, low-volume production, the ROI is often quick because every saved setup translates into faster delivery. For high-volume work, the integration lowers per-part cost and supports long-term profitability.
Accuracy and Quality Gains
When live tooling eliminates re-clamping between machines, concentricity and positional accuracy improve. This reduces scrap rates and rework costs, particularly in industries where tight tolerances are mandatory, such as aerospace, automotive, and medical. For many shops, the quality improvement alone justifies the investment.
When It Makes the Most Sense
Live tooling is most valuable when parts require both turning and secondary features, when space and manpower are limited, or when lead times are critical. On the other hand, if a shop produces only simple turned parts in very high volumes, a standard CNC lathe may remain the more economical choice.
Conclusion
In summary, live tooling is not a gimmick but a real extension of turning technology. By bringing machining processes like drilling, milling, and tapping into the lathe, it transforms what can be achieved in a single setup. Through powered tool holders, proper clamping systems, and CNC synchronization, shops gain the ability to cut more features, reduce re-clamping, and deliver parts faster with higher accuracy.
As someone deeply involved in CNC machine tool design and manufacturing at Rosnok, I’ve seen live tooling shift from being an option to becoming a standard in many shops. Our focus has always been on integrating the right interfaces, drive systems, and support so that customers turn potential into real, reliable output. This commitment is reflected in our range of CNC lathes, machining centers, Swiss-type lathes, and vertical lathes—machines built to combine precision, flexibility, and durability. By aligning advanced capabilities like live tooling with robust machine platforms, we help manufacturers achieve both the accuracy and the efficiency their production demands.
