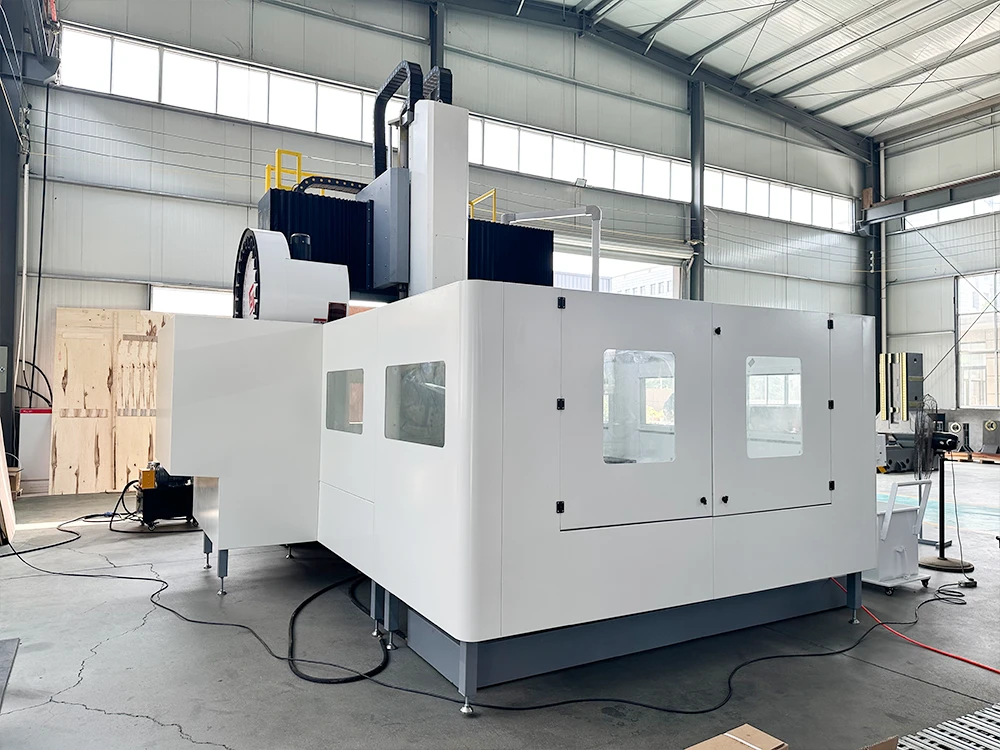

GMC5025 CNC Gantry Milling Machine for Efficient Large-Scale Machining
Built for precision-critical industries, the GMC5025 CNC gantry machining center integrates world-renowned Siemens or FANUC control systems to ensure stable performance, fast processing speeds, and global compatibility. The machine’s rigid structure supports large-scale parts while maintaining dynamic responsiveness. Its enhanced coolant delivery, chip evacuation, and thermal management systems enable extended high-load operations with minimal downtime. For manufacturers looking to boost productivity with confidence, GMC5025 combines reliable hardware with smart production efficiency — making it an ideal asset for future-ready machining environments.
GMC5025 Specifications
| Worktable Size: | 2300*5000 mm |
|---|---|
| Max Worktable Load: | 15 t |
| X/Y/Z Axis Travel: | 5000/2700/1000 mm |
| Gantry Width: | 2700 mm |
| Gantry Height: | 1300 mm |
| Spindle Speed: | 40-6000 rpm |
| Spindle taper: | BT50 |
| Main motor power: | 15/18.5 kW |
