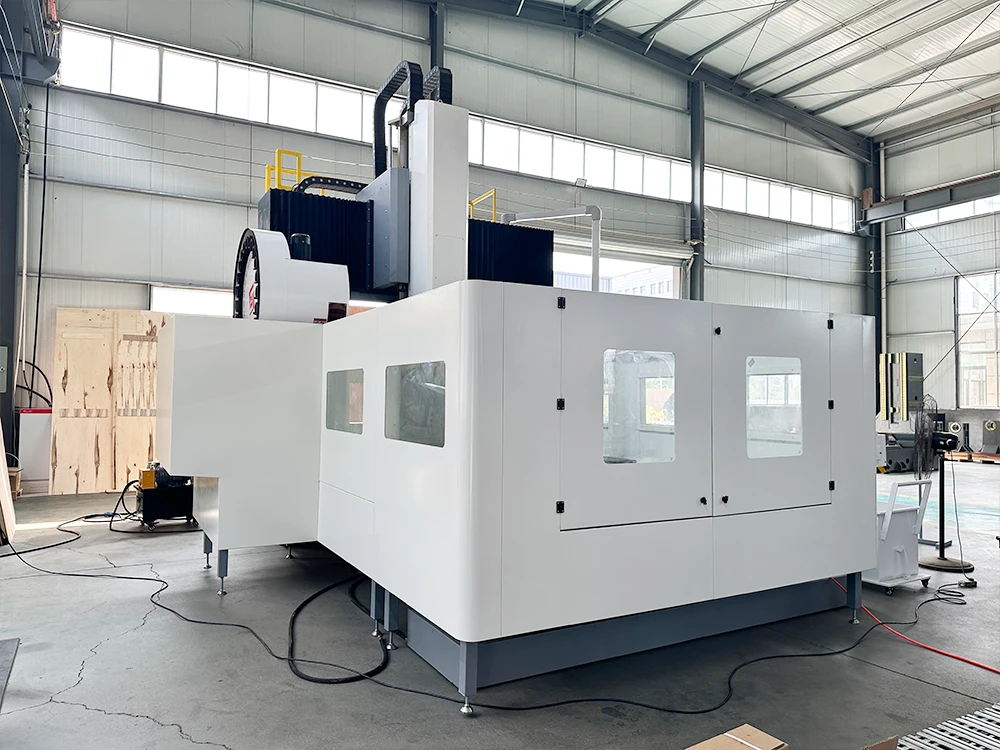

GMC4022 CNC Gantry Machining Center for High-Load Machining Tasks

The GMC4022 CNC gantry machining center is engineered to handle sustained high-load machining with structural stability and motion reliability at its core. Its rigid gantry framework and reinforced machine body provide strong resistance to deformation during heavy cutting, allowing cutting forces to remain controlled over long production cycles. A wide machining envelope combined with stable axis coordination supports consistent accuracy when processing large and heavy workpieces, making the GMC4022 a dependable solution for industrial-scale metal machining.

GMC4022 CNC Gantry Machining Center for High-Load Machining Tasks

GMC4022 Specifications

Worktable Size: 2000*4000 mm
Max Worktable Load: 12 t
X/Y/Z Axis Travel: 4000/2200/1000 mm
Gantry Width: 2300 mm
Gantry Height: 1400 mm
Spindle Speed: 40-6000 rpm
Spindle taper: BT50
Main motor power: 15/18.5 kW
