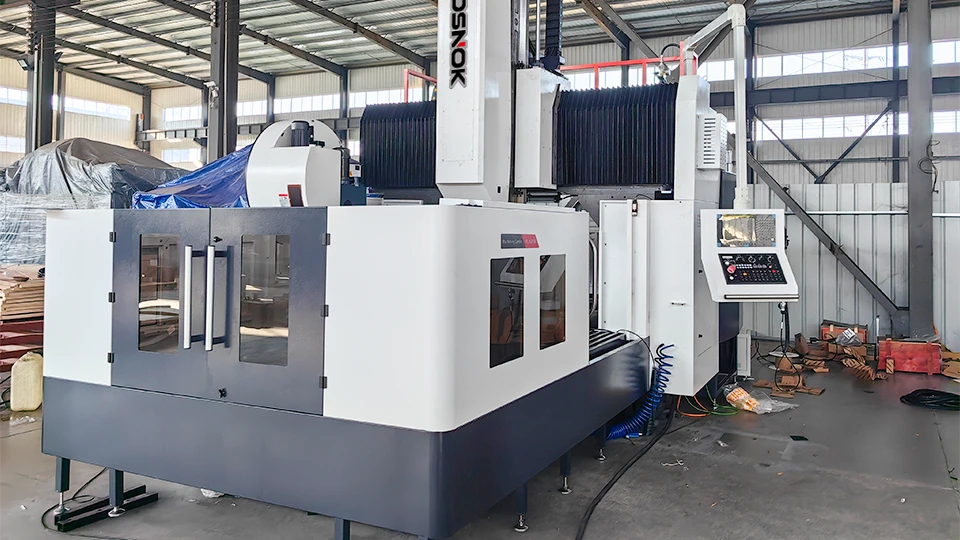

GMC2014 Gantry CNC Machine Designed for Accuracy and Stability
The GMC2014 gantry CNC machining center is engineered to meet the demands of high-precision, large-format machining in industrial environments. Built on a robust, thermally stable base with a reinforced gantry structure, it ensures consistent dimensional accuracy even during prolonged operation. Each axis integrates heavy-duty linear guides and high-efficiency ballscrews to support smooth motion and tight tolerances. Its rigid frame, powerful spindle system, and advanced motion control make it an ideal choice for manufacturers requiring both precision and endurance in large-part machining.
GMC2014 Specifications
| Worktable Size: | 1200*2100 mm |
|---|---|
| Max Worktable Load: | 3000 KG |
| X/Y/Z Axis Travel: | 2000/1500/800 mm |
| Gantry Width: | 1500 mm |
| Gantry Height: | 1100 mm |
| Spindle Speed: | 40-6000 rpm |
| Spindle taper: | BT50 |
| Main motor power: | 15/18.5 kW |
