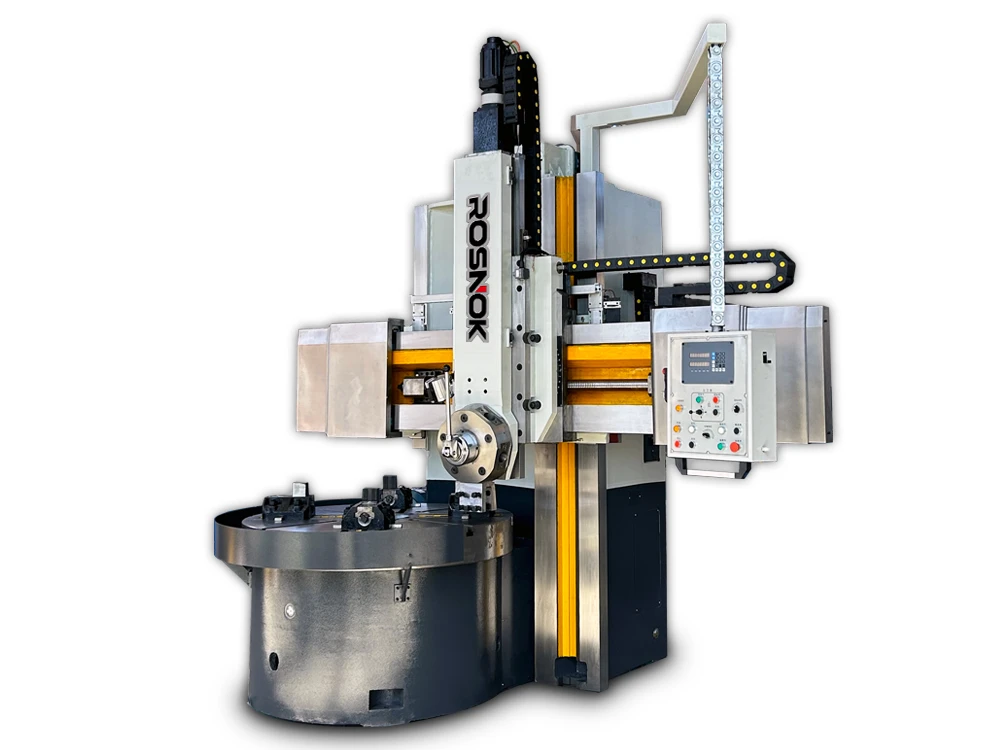

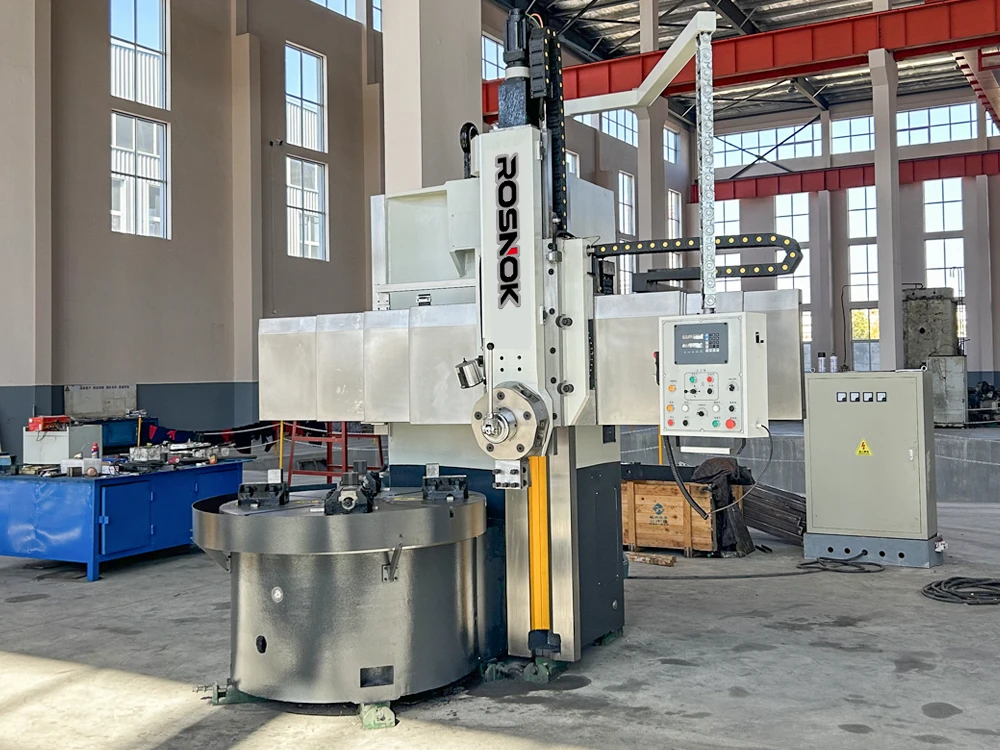

CK5123 Vertical Turret Lathe with Strong Rigidity for Stable Cutting

The CK5123 Vertical Turret Lathe is engineered for superior performance in processing large and heavy components. Built with a rigid, integrated base and a heavy-duty column, this machine offers outstanding structural strength to withstand demanding cutting forces. The advanced transmission system delivers steady torque and cutting efficiency, even when handling tough materials. With reduced vibration, improved thermal stability, and a low-maintenance design, the CK5123 helps your operation stay productive and precise—day after day.

CK5123 Vertical Turret Lathe with Strong Rigidity for Stable Cutting

CK5123 Specifications

Max Machining Diameter: 2300 mm
Max Height of Workpiece: 1250 mm
Max Weight of Workpiece: 8 t
Worktable Diameter: 2000 mm
Worktable Speed: 2-62 rpm
Max Torque of Worktable: 32 kN · m
Machine Weight: 20 t
Main motor power: 30 kW
